why stator & rotor cores are in high demand

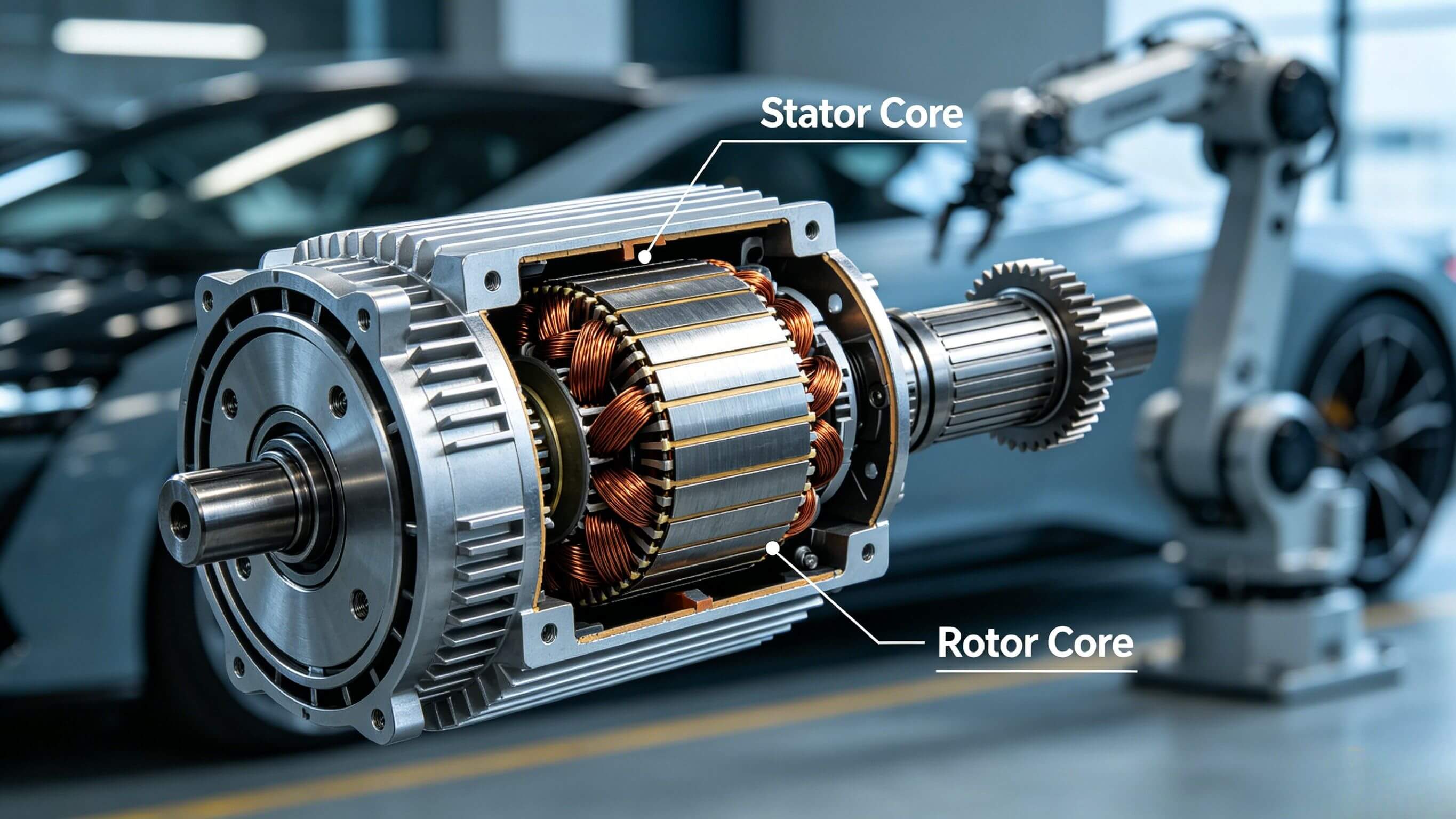

What Is a Motor Iron Core?

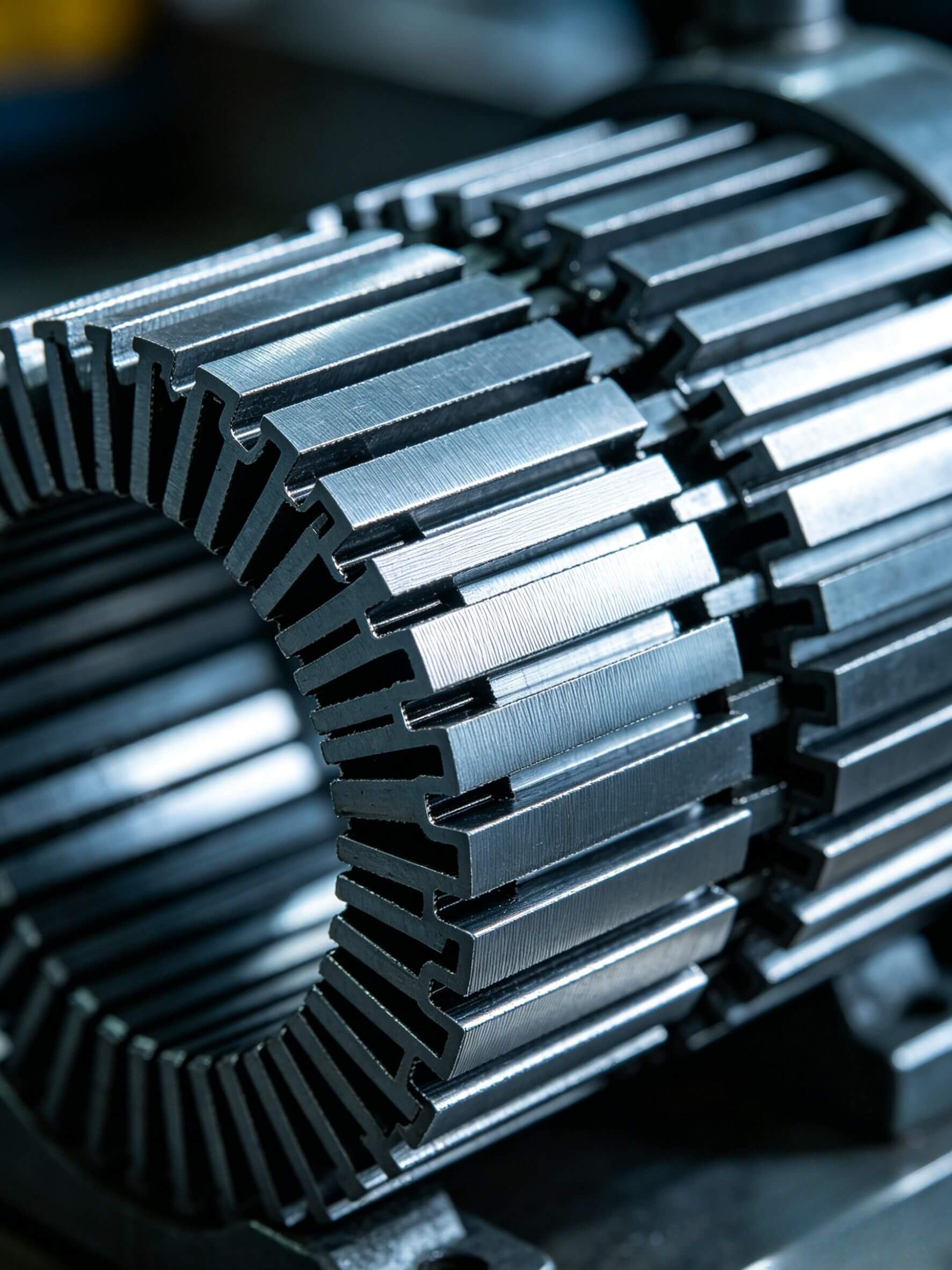

A motor iron core is laminated with insulated non-oriented silicon steel sheets via precision stamping. As the key magnetic circuit part of all electric motors, it directly determines motor efficiency, temperature resistance and NVH performance. High-quality motor cores feature low iron loss, ultra-tight tolerance and stable lamination effect.

Core Functions

Magnetic Conduction: Gather magnetic flux to stabilize electromagnetic conversion and boost motor torque.

Loss Reduction: Suppress eddy current loss, lower operating temperature and cut power consumptio.

Structure Support: Fix copper windings effectively and reduce motor vibration & running noise.

Why Motor Cores Demand Surges in 2026

1.New Energy Electric Vehicles

One complete new energy vehicle requires 2-3 sets of motor cores for drive motors and auxiliary components. The widespread 800V high-voltage platforms raise higher requirements for motor parts. High-speed EV motors (20,000+ RPM) widely adopt 0.20mm & 0.27mm low-loss silicon steel cores instead of traditional 0.35mm sheets. Automotive-grade stator and rotor cores are facing persistent supply shortages across the market.

2.Global High-Efficiency Industrial Motor Upgrade

Global energy regulations phase out low-efficiency IE1/IE2 motors and popularize IE3-IE5 energy-saving motors for fans, pumps, compressors and CNC equipment. Outdated cores cause excessive heat and high energy consumption. Massive equipment replacement projects bring steady, long-term orders for high-efficiency industrial motor cores.

3.Robotic Servo Motor Development

Humanoid and collaborative robots need 20-30 servo motors per unit for joint movement. Servo motor cores require ultra-high precision (±0.01mm tolerance), low cogging torque and zero abnormal noise. Restricted by die manufacturing and inspection technology, high-end micro servo cores are always in short supply.

4.Brushless Tools & Inverter Home Appliances

Over 80% of global power tools adopt brushless motors. Meanwhile, inverter household appliances have become mainstream. The fast penetration of brushless & inverter motors greatly fuels the demand for cost-effective miniature precision motor cores for mass production.

5.Energy Storage & Wind Power

Driven by carbon neutrality policies, wind power direct-drive motors and energy storage reactors need customized large-size & high-frequency resistant iron cores. It further expands the application scope and market scale of premium motor cores.

Key Procurement Criteria for Premium Motor Cores

Buyers prioritize precision, material performance and delivery capability when sourcing motor cores:

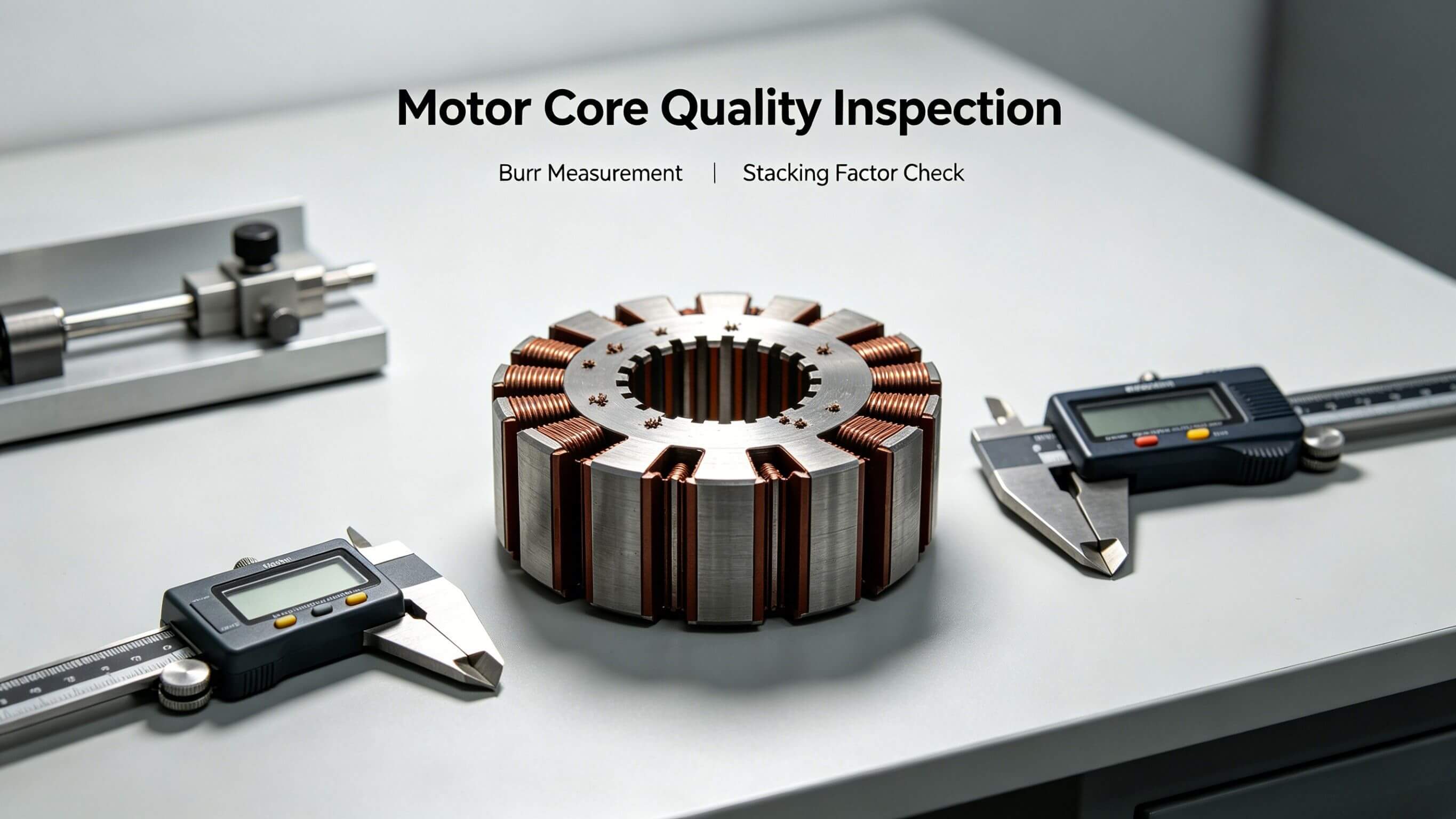

●Tolerance: Burr ≤ 0.02mm, dimensional accuracy within ±0.01mm;



●Silicon Steel Grade: 0.20/0.27mm for EV motors; 0.35mm for standard industrial motors;



●Stacking Factor: Maintain over 0.95, support riveting and self-bonding lamination;



●Delivery: 48-hour rapid prototyping, 7-day mass production delivery for customized orders.
