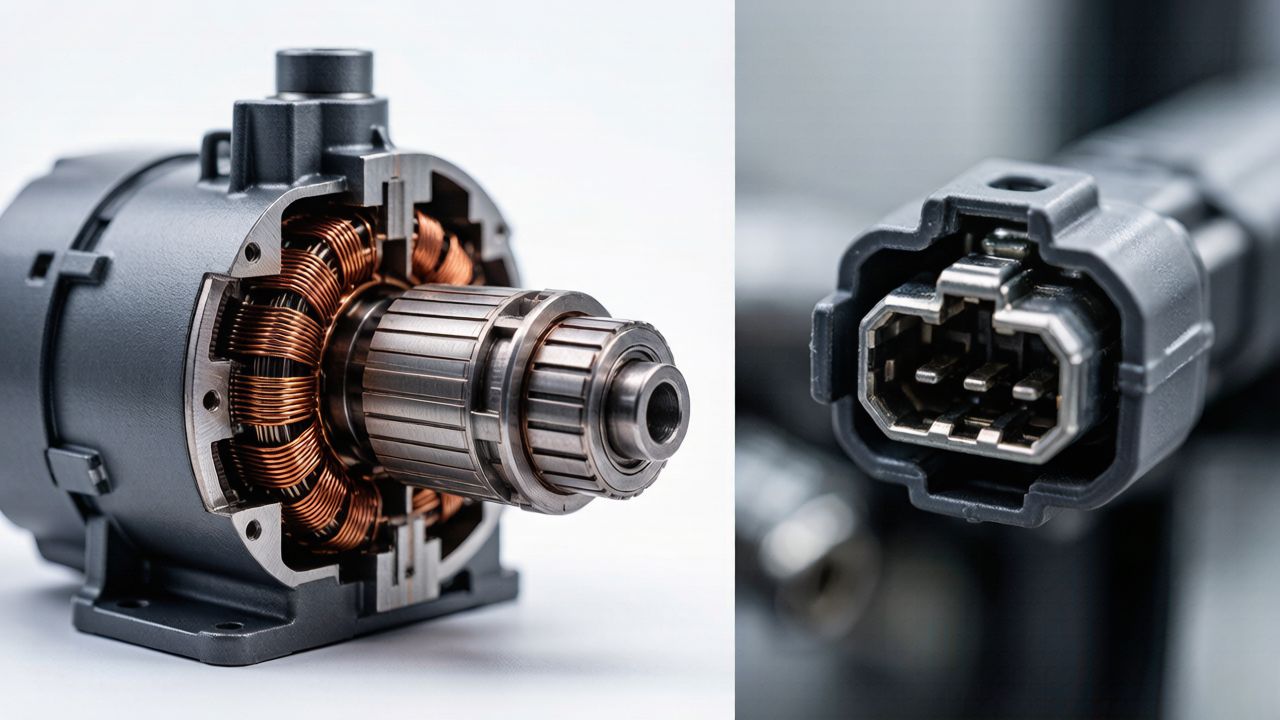

Why Precision Stamping Matters for New Energy Motor Terminals

How Micro Precision Stamping Improves Motor Efficiency

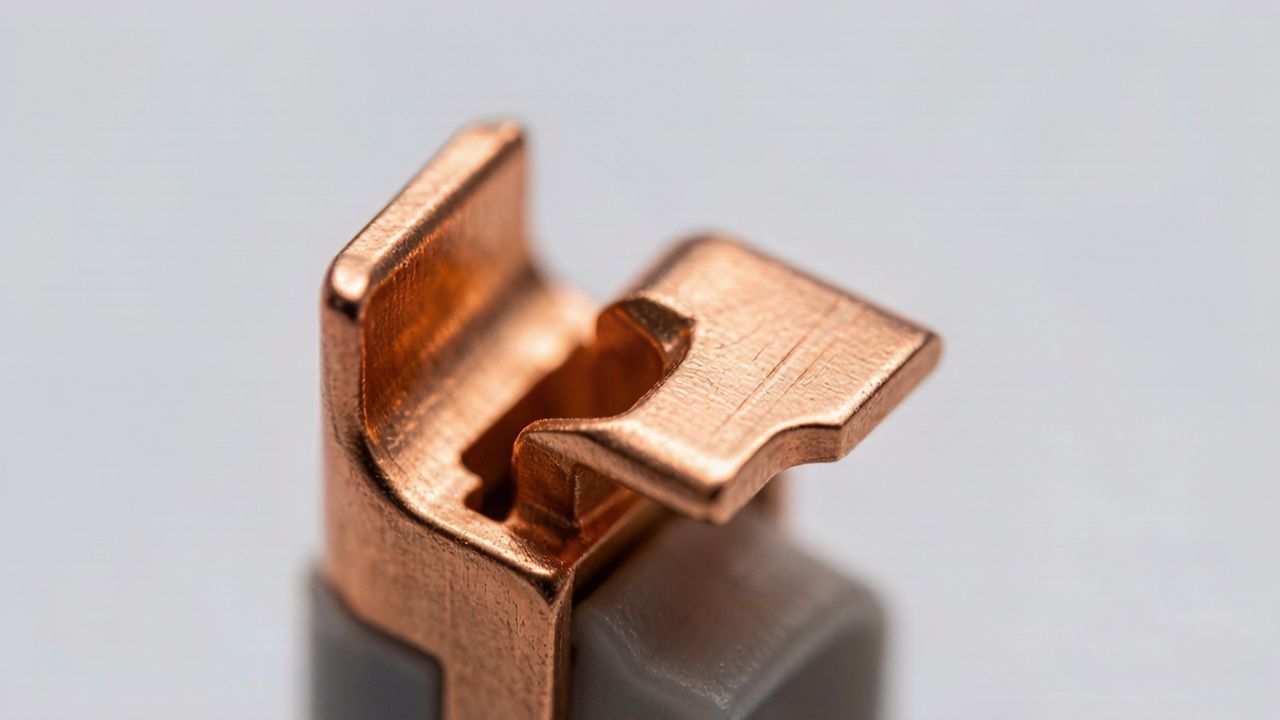

1. Low-Resistance Material & Design

Uses high-conductivity copper alloys (C19010/C19015, >90% IACS) to minimize power loss.

Precise geometry ensures optimal contact area, cutting contact resistance to 0.08 mΩ or lower.

Reduced heat generation allows motors to run cooler and consume less energy.

2. Zero-Defect Surface Quality

Stamped with ±0.01 mm tolerance and burrs under 5 μm, eliminating hot spots.

Smooth surfaces reduce friction and wear during assembly and operation.

3. Consistent Electrical Performance

High-speed progressive stamping (800–2000 SPM) ensures every terminal is identical.

Uniform current distribution across windings improves power density and efficiency.

How Micro Precision Stamping Enhances Motor Reliability

1. Superior Mechanical Stability

Precision dies (±0.005 mm) deliver tight, secure fits that resist vibration and thermal expansion.

High-strength copper alloys and Au/Ni or Ag/Sn plating boost durability in harsh conditions.

Withstands 10,000+ insertions and temperatures from -40°C to 200°C.



2. Corrosion & Oxidation Resistance

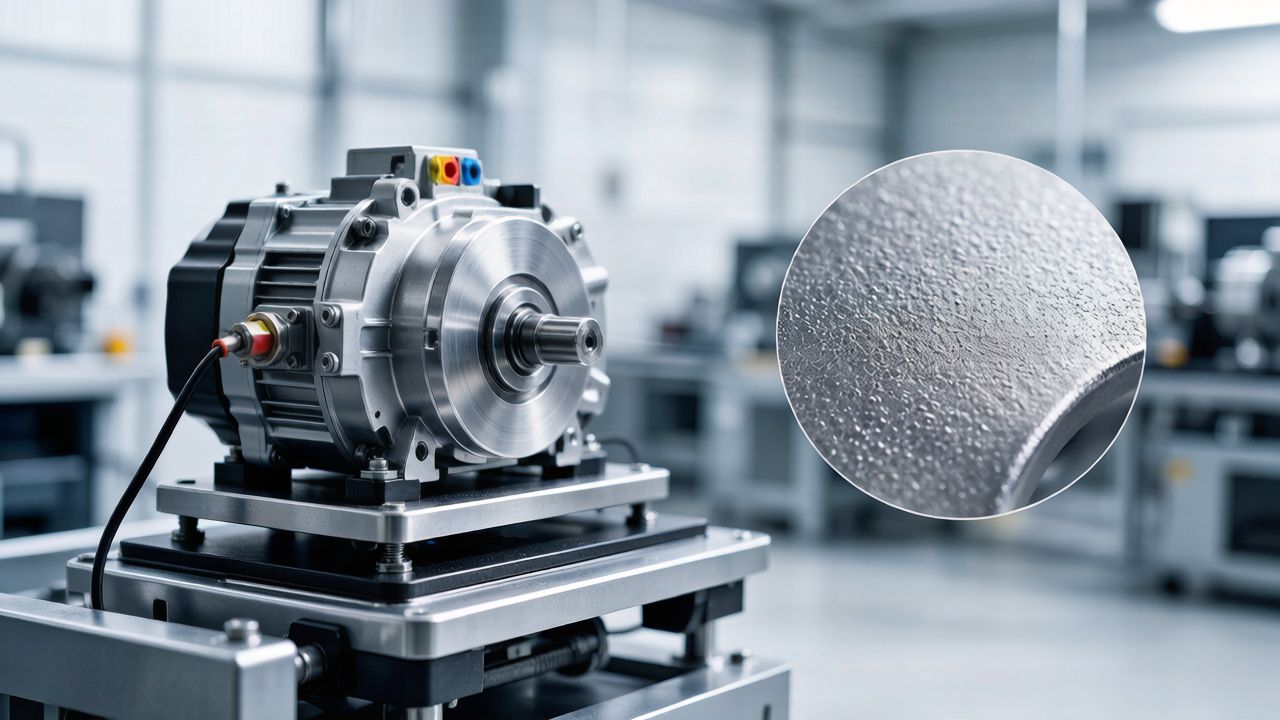

Advanced plating (Ag/Sn, Au/Ni) provides 500+ hours of salt spray resistance.

Prevents oxidation that degrades conductivity over time.



3. Strict Quality Control

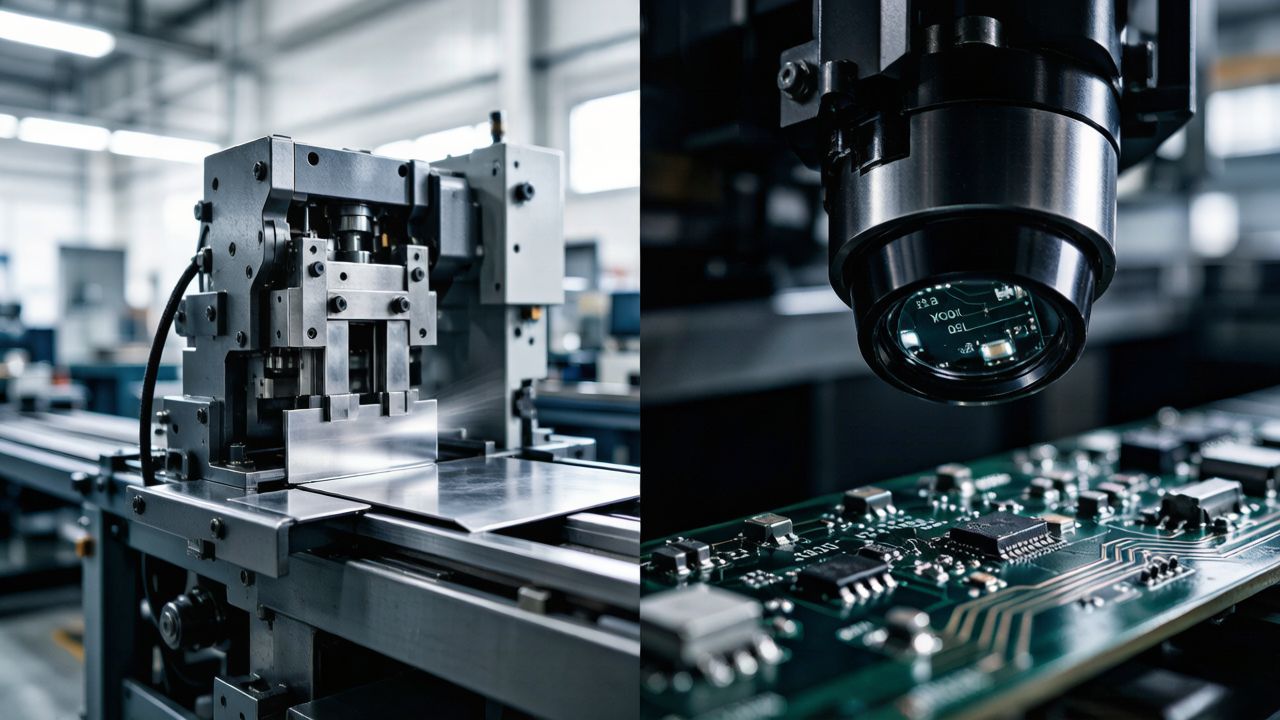

100% inline inspection via machine vision and AOI catches defects in real time.

Statistical process control (SPC) ensures consistent quality with failure rates <0.05%.



Key Advantages for Manufacturers

Cost-effective: High-volume production with lower material waste than CNC machining.

Design flexibility: Creates complex terminal geometries for compact, high-power motors.

Scalability: Supports mass production without sacrificing precision.

Conclusion

Micro precision stamping transforms new energy motor terminals from simple connectors into high-performance components that directly drive efficiency and reliability. By combining micron accuracy, premium materials, and strict quality control, this process ensures motors deliver maximum power with minimal loss—critical for EVs, industrial automation, and renewable energy applications.

For motor manufacturers, partnering with a precision stamping expert isn’t just a choice—it’s a competitive advantage in the new energy era.
